Crysalli has a variety of elegant draft towers and pans designed to provide refreshing, sparkling and chilled still water. Our offerings of beautifully mirrored finishes include; white, chrome, black chrome, and gold. Functionality was crucial and we offer multiple configurations to meet your needs. If installed in a self-service application, you can upgrade to a downward pointing nozzle and even add sanitary levers to reduce any health concerns. The downward pointing nozzles are also self-closing, eliminating the need to manually return the handle to the starting position.

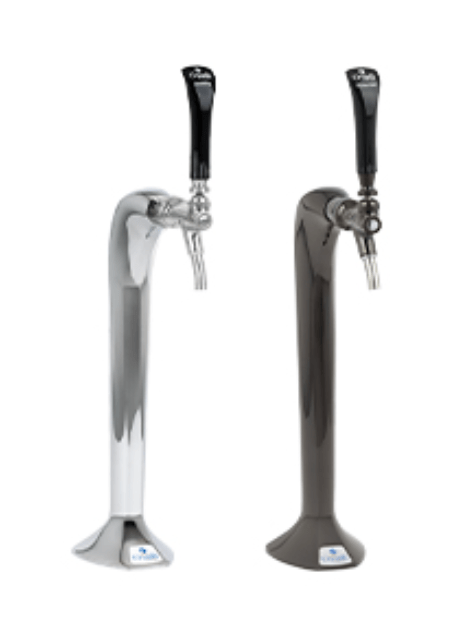

CBR-V1-SSX Single Valve, Single Product
CBR-V1C-SSX Chrome finish option
CBR-V1BLC-SSX Black Chrome finish option
- Featuring a stainless steel pull handle SSX faucet and all stainless steel tubing
- Flow rate is adjustable up to 2 oz per second and can be locked
- Self-closing when handle is released. Can be converted to stay-open function
- Downward pointing nozzle
- Bottle filling clearance: 12.375”
- Tower height (including 4” tap handle): 21”
- Ergonomic grip handle
- Supplied with quick connect fittings for easy hook-up to our CR-4L38 trunkline
- Comes with base gasket for water tight seal to counter
- For use and pairing with all Crysalli remote chillers
- Weight: 10 lbs
CBR-V1-MINI Single Valve, Single Product, Short Tower
Flow rate is adjustable to your liking and can be locked in a specific setting.
- Faucet flow rate: 1.5-2 oz per second
- One faucet for sparkling or chilled still water
- Height: 13.5”
- Bottle filling clearance: 5.5”
- Ergonomic handles
- Supplied with quick connect fittings for easy hook-up to our CR-4L38 trunkline
- For use and pairing with all Crysalli Remote Chillers
- Low profile design for positioning the tower over sinks, low overhead cabinet space, or on tall counters
- Weight: 8 lbs

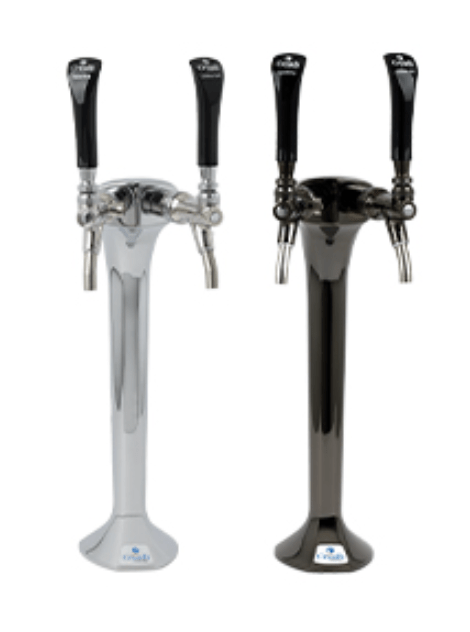

CBR-V2-SSX Two Valve, Two Product
CBR-V2C-SSX Chrome finish option
CBR-V2BLC-SSX Black Chrome finish option
- Featuring stainless steel pull handle SSX faucets and all stainless steel tubing
- Flow rate is adjustable up to 2 oz per second and can be locked
- Self-closing when handles are released. Can be converted to stay-open function
- Downward pointing nozzles
- Bottle filling clearance: 12.375”
- Tower height (including 4” handles): 21”
- Ergonomic grip handles
- Supplied with quick connect fittings for easy hook-up to our CR-4L38 trunkline
- Comes with base gasket for water tight seal to counter
- For use and pairing with all Crysalli remote chillers
- Weight: 12 lbs
CBR-V2-MINI -SSX Two Valve, Two Product, Short Tower
Flow rate is adjustable to your liking and can be locked in a specific setting.
- Faucet flow rate: 1.5-2 oz per second
- Two faucets for sparkling and chilled still water
- Height: 15.5”
- Bottle filling clearance: 7.5”
- Ergonomic handles
- Supplied with quick connect fittings for easy hook-up to our CR-4L38 trunkline
- For use and pairing with all Crysalli Remote Chillers
- Low profile design for positioning the tower over sinks, low overhead cabinet space, or on tall counters
- Weight: 11 lbs
CBR-V3-SSX Three Valve, Three Product
CBR-V3C-SSX Chrome finish option
CBR-V3BLC-SSX Black Chrome finish option
- Featuring stainless steel pull handle SSX faucets and all stainless steel tubing
- Flow rate is adjustable up to 2 oz per second and can be locked
- Self-closing when handles are released. Can be converted to stay-open function
- Downward pointing nozzles
- Bottle filling clearance: 12.5”
- Tower height (including 4” faucet handles): 21”
- Ergonomic grip handles
- Supplied with quick connect fittings for easy hook-up to our CR-4L38 trunkline along with ambient temp filtered water tubing and splice fittings
- Comes with base gasket for water tight seal to counter
- For use and pairing with all Crysalli Remote Chillers
- Weight: 16 lbs
CBR-V1-SDLX Single Product Tower with Sanitary Dispense Levers
CBR-V1C-SDLX Chrome finish option
CBR-V1BLC-SDLX Black Chrome finish option
- Flow rate is adjustable up to 2 oz per second and can be locked
- Ideal for self service; Cup push to dispense sanitary levers,
- ADA friendly: sanitary lever lowers activation point of the faucet by 6.25”
- Self closing faucets with downward pointing nozzles
- Bottle filling clearance: 12.375”
- Tower height (including 4” tap handle): 21”
- Ergonomic handles or SS knobs
- Supplied with quick connect fittings for easy hook-up to our CR-4L38 trunkline
- Comes with base gasket for water tight seal to counter
- For use and pairing with all Crysalli remote chillers
- Weight: 10 lbs
CBR-V2-SDLX Two Product Tower with Sanitary Dispense Levers
CBR-V2C-SDLX Chrome finish option
CBR-V2BLC-SDLX Black Chrome finish option
- Flow rate is adjustable up to 2 oz per second and can be locked
- Ideal for self service; Cup push to dispense sanitary levers
- ADA friendly: sanitary lever lowers activation point of the faucet by 6.25”
- Self-closing faucets with downward pointing nozzles
- Bottle filling clearance: 12.375”
- Tower height (including 4” handles): 21”
- Ergonomic grip handles or SS knobs
- Supplied with quick connect fittings for easy hook-up to our CR-4L38 trunkline
- Comes with base gasket for water tight seal to counter
- For use and pairing with all Crysalli remote chillers
- Weight: 12 lbs

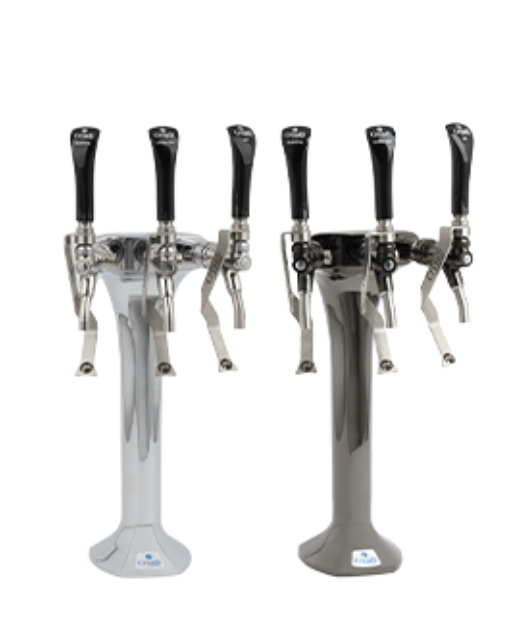

CBR-V3-SDLX Three Product Tower with Sanitary Dispense Levers
CBR-V3C-SDLX Chrome finish option
CBR-V3BLC-SDLX Black Chrome finish option
- Featuring stainless steel SSX faucets with SS levers and all SS tubing
- Flow rate is adjustable up to 2 oz per second and can be locked
- Ideal for self service; Cup push to dispense sanitary levers
- ADA friendly: sanitary lever lowers activation point of the faucet by 6.25”
- Self-closing faucets with downward pointing nozzles
- Bottle filling clearance: 12.5”
- Tower height (including 4” faucet handles): 21”
- Ergonomic grip handles or SS cap knobs
- Supplied with quick connect fittings for easy hook-up to our CR-4L38 trunkline along with ambient temp filtered water tubing and splice fittings
- Comes with base gasket for water tight seal to counter
- For use and pairing with all Crysalli remote chillers
- Weight: 16 lbs
CR-X3PB-COMP Three Button Single Spout Tower
Includes in-line flow control device for adjusting and setting sparkling water flow rate.
- 3 Push-to-dispense buttons: Sparkling, Chilled Still & Ambient
- Height: 12.6”
- Swiveling Nozzle arm
- Bottle Clearance: 9” to 10”
- Supplied with quick connect fittings
- Ideal for over sink mount and self-service applications
CM-2PB Counter Mount, Two Push Button Valves
CM-2-PB detachable drain pan option
CM-2-PB-RDP recessed drain pan option
- Faucet flow rate: 1.5-2 oz per second
- Two valves for sparkling and chilled still water
- Bottle filling clearance: 12″
- Blue lit LED push button switches, push and hold to dispense
- For use and pairing with CR-UCM1 or CR-UCM2 Remote Chillers
- Lift off drip pan
- Mirrored stainless steel finish
- Weight: 11 lbs
- 10.25″ Width
- 8.75″ Depth
- 18.5″ Height

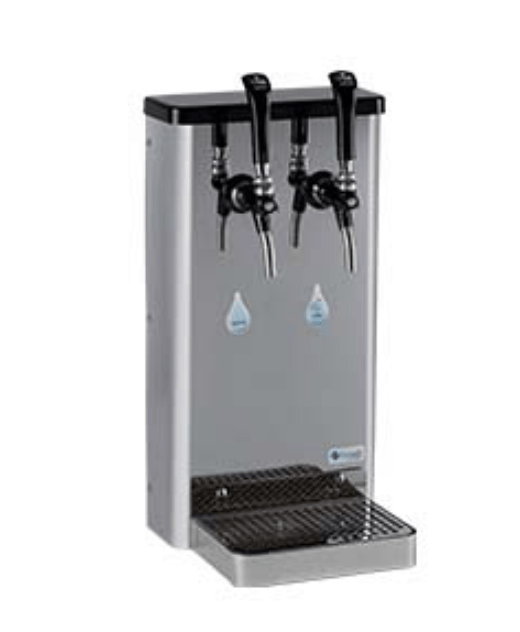

CM-V2W Counter or Wall Mount, 2 Pull Handle Faucets
Flow rate is adjustable to your liking and can be locked in a specific setting.
- Faucet flow rate: 1.5-2 oz per second
- Two faucets for sparkling and chilled still water
- Bottle filling clearance: 12″
- Ergonomic handles
- For use and pairing with CR-UCM1 or CR-UCM2 Remote Chillers
- Lift off drip pan
- Mirrored stainless steel finish. Optionally available in brushed stainless steel finish
- Weight: 10 lbs
- 10.69″ Width
- 10″ Depth
- 20.75″ Height

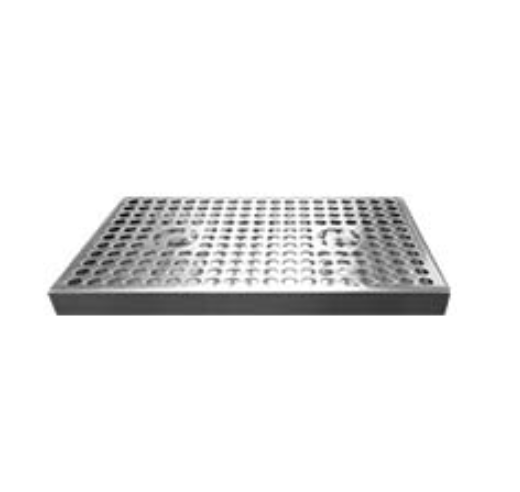

DP-CT Drain Pan Countertop Mount
Countertop mount drain pan.
- 0.5″ drain pipe
- For use with CBR-V1, CBR-V2 and LIT-V2C towers
- Removable drain grate for cleaning
- Stainless steel construction
- 10″ Width
- 6″ Depth
- 0.75″ Height

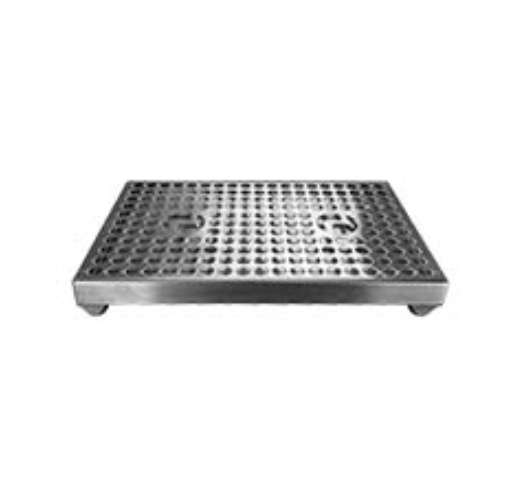

DP-CT-LD Drain Pan Countertop Mount
Countertop mount drain pan.
- For use with CBR-V1, CBR-V2, and LIT-V2C towers
- Removable drain grate for cleaning
- Stainless steel construction
- For applications where no floor sink drain is available
- 10″ Width
- 6″ Depth
- 0.75″ Height
RDP-3SSQ Flush Mount Drain Pan for 3 Valve Tower
Flush mount, recessed drain pan design.
- For use with CBR-V3, LIT-V3C and CRVS-V2C towers
- Stainless steel construction
- 15″ Width
- 18.125″ Depth
- 0.75″ Height
RDP-1SSQ-1CL Flush Mount Drain Pan for a 1 Valve Tower
Flush mount, recessed drain pan design.
- Stainless steel construction
- 0.5″ drain stub
- Single drip mark drain pan
- For use with CBR-V1 and CBR-V1C-MINI
- 12″ Width
- 15.125″ Depth
- 0.75″ Height
RDP-1-SSQ-2CL Flush Mount Drain Pan for a 2 Valve Tower
Flush mount, recessed drain pan design.
- Stainless steel construction
- 0.5″ drain stub
- Two drip mark drain pan
- For use with CBR-V2, CBR-V2C-MINI and LIT-V2C towers
- 12″ Width
- 15.125″ Depth
- 0.75″ Height
Custom Water Solutions
