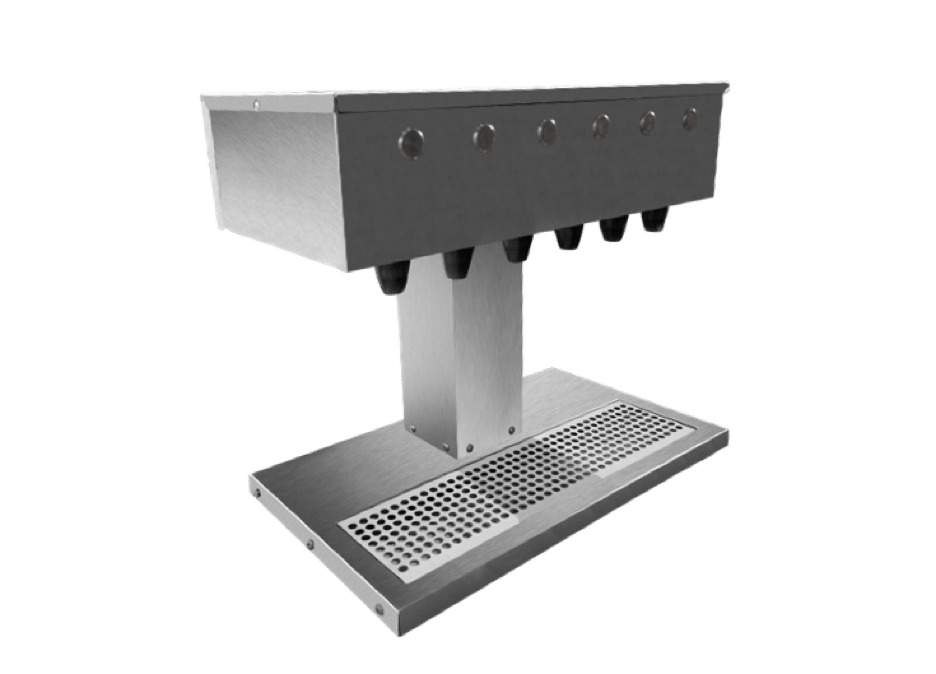

POST MIX TOWERS
CM-T-4V-PBV CM-T-6V-PBV CM-T-8V-PBV
Specifications
- Blue LED illuminated push and hold to dispense buttons
- Integrated base & drip pan
- Valves can be configured for carbonated or non-carbonated beverages
- 304 stainless steel brushed finish
- Key to lock out dispense buttons
- Faucet flow rate: 1.5-2.0 oz/sec
- Clearance: 10″
- 20″W x 12″D x 17.375″ H
- 120V – 1 Amp – 60 Hz
- Dispense tower to be paired with the CBDS cold carb or non-carb remote chiller
COLD CARB CHILLERS

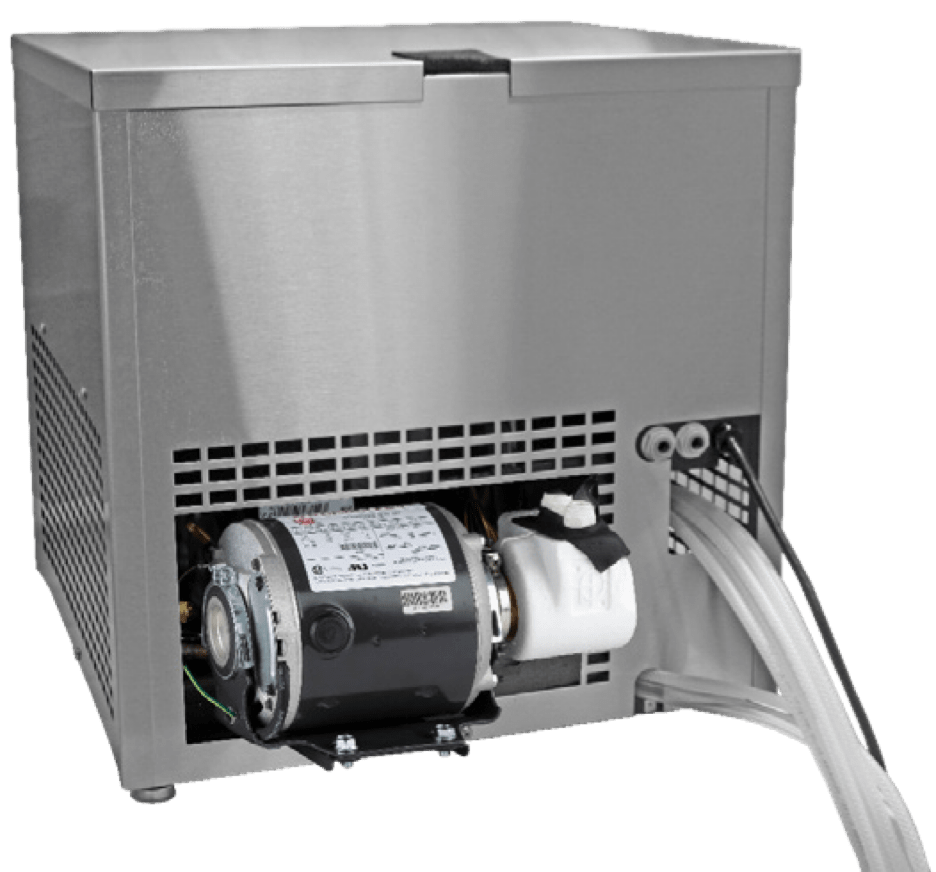

CBDS-P2000-R-UC
Remote Beverage Chiller
Fountain Dispense Cold Carb Chiller
- Undercounter recirculation system keeps water and syrup chilled from the chiller to the beverage dispenser
- Reduced ice consumption compared to cold plate systems
- Durable, easy to clean, stainless steel cabinet
- 304 stainless steel brushed finish panels
- Reduced counter space need compared to cold plate systems
Specifications
- Dispense capacity: 1, 12 oz drink per minute (Max capacity: 50, 12 oz drinks at this duty cycle)
- Flow rate: 3 oz per second
- Dispense temperature: <40°F
- Self-contained refrigeration system
- Compressor: 1/9 H.P.
- Refrigerant: R134a CFC-free
- Electrical: 120 VAC
- Minimum amps: 4.5
- Cold carbonation technology
- Carbonator pump: 1 GPM (max pressure 160 PSI)
- Built-in re-circulatory pump allows for an installation distance up to 6’ between chiller and dispenser
- Water Bath: 2.5 Gallons
- Ice Bank: 6 lbs
- Dry Weight: 80 lbs
- 11.75”W x 17.5”D x 16.5”H
- CBDS-P2000-R-UC-BH-R4 and R-6 are reverse osmosis compatible

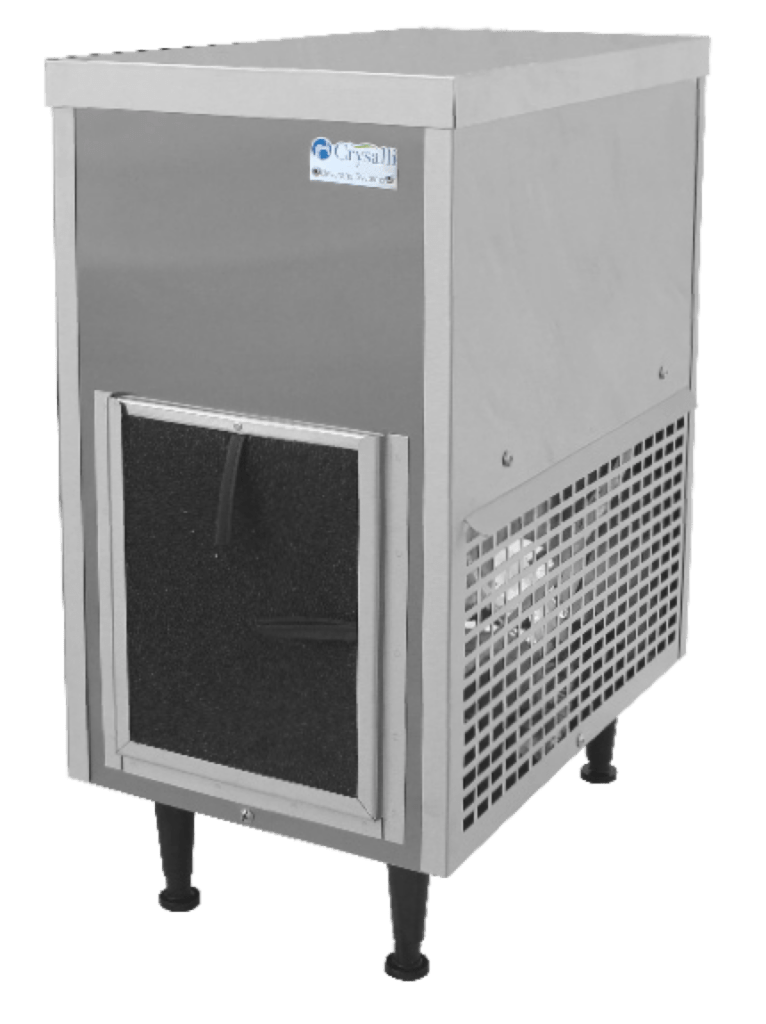

CBDS-UCM1
Remote Beverage Chiller
Fountain Dispense Cold Carb Chiller
- Remote recirculation system keeps water and syrup chilled from the chiller to the beverage dispenser
- Reduced ice consumption compared to cold plate systems
- Durable, easy to clean stainless steel cabinet
- 304 stainless steel brushed finish panels
- Reduced counter space need compared to cold plate systems
Specifications
- Dispense capacity: 2, 12 oz drinks per minute (Max capacity: 80, 12 oz drinks at this duty cycle)
- Flow rate: 3 oz per second
- Dispense temperature: <40°F
- Self-contained refrigeration system
- Compressor: 1/5 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,2000 per hour average
- Electrical: 120 VAC
- Minimum amps: 9.6
- Cold carbonation technology
- Carbonator: 1.67 GPM (100 GPH)
- Water Bath: 4 Gallons
- Ice Bank: 9.5 lbs
- Weight: 115 lbs
- Built-in re-circulatory pump allows for an installation distance up to 35’ between tower and chiller
- 12”W x 23.5”D x 24.5”H

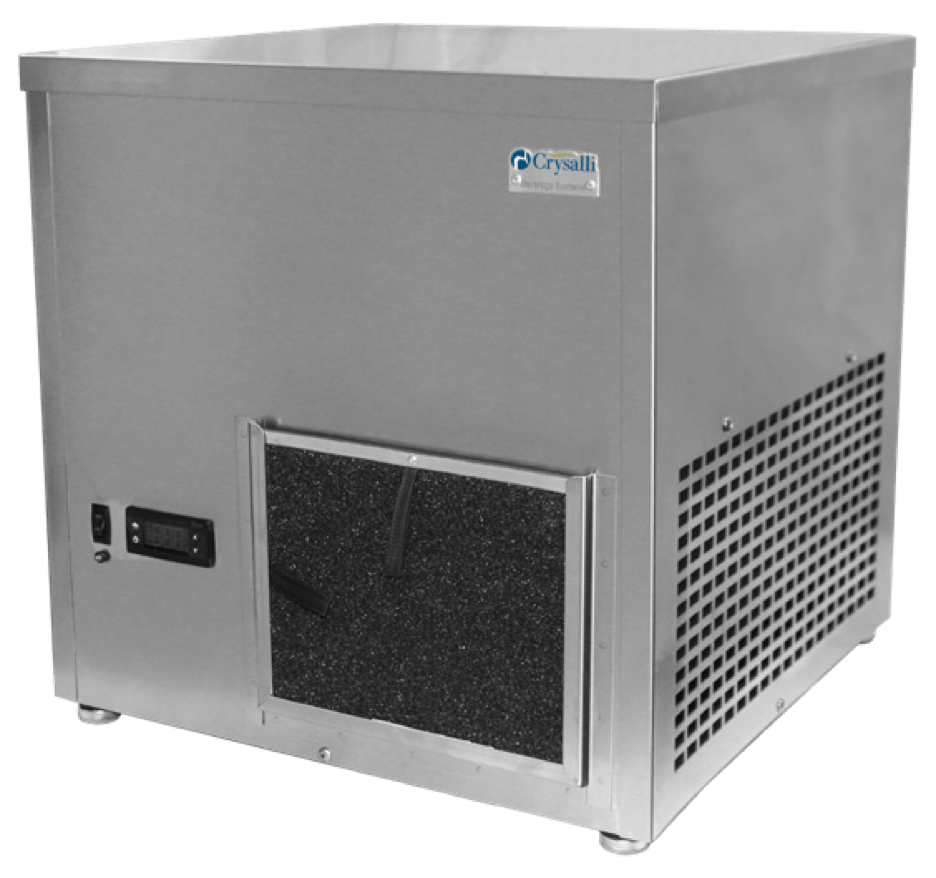

CBDS-UCM2-2CL
Remote Beverage Chiller
Fountain Dispense Cold Carb Chiller
- Remote recirculation system keeps water and syrup chilled from the chiller to the beverage dispenser(s)
- Reduced ice consumption compared to cold plate systems
- Durable, easy to clean stainless steel cabinet
- 304 stainless steel brushed finish panels
- Reduced counter space need compared to cold plate systems
Specifications
- Dispense capacity: 3, 12 oz drinks per minute (Max capacity: 145, 12 oz drinks at this duty cycle)
- Flow rate: 3 oz per second
- Dispense temperature: <40°F
- Self-contained refrigeration system
- Compressor: 1/3 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,600 per hour average
- Electrical: 120 VAC
- Minimum amps: 15
- Cold carbonation technology
- Carbonator: 1.67 GPM (100 GPH)
- Water Bath: 6 Gallons
- Ice Bank: 25 lbs
- Weight: 165 lbs
- Built-in re-circulatory pump allows for an installation distance up to 45’ between tower and chiller
- 20”W x 20”D x 20”H
CBDS-UCM2-2CL-S0096
Remote Beverage Chiller
Fountain Dispense Cold Carb Chiller
- Remote recirculation system keeps water and syrup chilled from the chiller to the beverage dispenser(s)
- Reduced ice consumption compared to cold plate systems
- Durable, easy to clean stainless steel cabinet
- 304 stainless steel brushed finish panels
- Reduced counter space need compared to cold plate systems
Specifications
- Dispense capacity: 3, 12 oz drinks per minute (Max capacity: 145, 12 oz drinks at this duty cycle)
- Flow rate: 3 oz per second
- Dispense temperature: <40°F
- Self-contained refrigeration system
- Compressor: 1/3 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,600 per hour average
- Electrical: 120 VAC
- Minimum amps: 20.9
- Cold carbonation technology
- Carbonator: 1.67 GPM (100 GPH)
- Water Bath: 6 Gallons
- Ice Bank: 25 lbs
- Dry Weight: 170 lbs
- Built-in re-circulatory pump allows for aninstallation distance up to 75’ between tower and chiller
- 20”W x 26”D x 20”H
NON-CARB CHILLERS
CBDS-P2000-SW
Undercounter Beverage Chiller
Fountain Dispense Non-Carb Chiller
- Undercounter recirculation system keeps water and syrup chilled from the chiller to the beverage dispenser
- Reduced ice consumption compared to cold plate systems
- Durable, easy to clean, stainless steel cabinet
- Reduced counter space need compared to cold plate systems
Specifications
- Dispense capacity: 1, 12 oz drink per minute (Max capacity: 50, 12 oz drinks at this duty cycle)
- Flow rate: 3 oz per second
- Dispense temperature: <45°F
- Self-contained refrigeration system
- Compressor: 1/9 H.P.
- Refrigerant: R134a CFC-free
- Electrical: 120 VAC
- Minimum amps: 3.3
- Water Bath: 2.5 Gallons
- Ice Bank: 6 lbs
- Dry Weight: 80 lbs
- 11.75”W x 17.5”D x 16.5”H
CBDS-UCW
Remote Beverage Chiller
Fountain Dispense Non-Carb Chiller
- Remote recirculation system keeps water and syrup chilled from the chiller to the beverage dispenser
- Reduced ice consumption compared to cold plate systems
- Durable, easy to clean, stainless steel cabinet
- Reduced counter space need compared to cold plate systems
Specifications
- Dispense capacity: 1.5, 12 oz drinks per minute (Max capacity: 80, 12 oz drinks at this duty cycle)
- Flow rate: 3 oz per second
- Dispense temperature: <45°F
- Self-contained refrigeration system
- Compressor: 1/5 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,2000 per hour average
- Electrical: 120 VAC
- Minimum amps: 2.9
- Water Bath: 4 Gallons
- Ice Bank: 17 lbs
- Weight: 105 lbs
- Built-in re-circulatory pump allows for an installation distance up to 35’ between chiller and dispenser
- 12”W x 18.75”D x 24.5”H
CBDS-UCM2-SW-2CL
Remote Beverage Chiller
Fountain Dispense Non-Carb Chiller
- Remote recirculation system keeps water and syrup chilled from the chiller to the beverage dispenser(s)
- Reduced ice consumption compared to cold plate systems
- Durable, easy to clean stainless steel cabinet
- Reduced counter space need compared to cold plate systems
Specifications
- Dispense capacity: 3, 12 oz drinks per minute (Max capacity: 145, 12 oz drinks at this duty cycle)
- Flow rate: 3 oz per second
- Dispense temperature: <45°F
- Self-contained refrigeration system
- Compressor: 1/3 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,400 per hour average
- Electrical: 120 VAC
- Minimum amps: 7.7
- Water Bath: 6 Gallons
- Ice Bank: 25 lbs
- Weight: 135 lbs
- Built-in re-circulatory pump allows for an installation distance up to 45’ between tower and chiller
- 20”W x 20”D x 20”H
