Crysalli has a variety of durable remote chillers and draft towers designed to provide refreshing, sparkling and chilled still water to meet the demands for high volume accounts such as filling bottles or carafes. The systems are designed with an integrated cold carbonation system and recirculation pump that enables the chiller to be installed up to 75 feet from the dispense tower or installed in a well ventilated cabinet near the tower and delivers ingredient sparkling and chilled still water at an average temperature of 34° – 40° F.
All Crysalli systems require proper filtration, consult the Crysalli Artisan Water Accessories page for more water filtration information.
CR-UCM1 Remote Chiller Unit, Sparkling & Still
Cold carbonation for better long lasting sparkling water. Designed for remote or backhouse mounting applications: Up to 35′. Use with out two faucet tower, CBR-V2 or three faucet tower, CBR-V3. Other options, styles and colored towers available.
- 50 liters per hour at <40°
- Self-contained refrigeration system
- Compressor: 1/5 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,200 per hour average
- Operating temperature range: 40°-100°
- Electrical: 120v – 9.6 Amps
- Carbonator: 1/3 H.P.
- Water bath: 4 gallons
- Ice bank: 9.5 lbs
- Weight: 115 lbs
- Built-in re-circulatory pump allows for an installation distance up to 35′ between tower and chiller
- 12″ Width
- 23.5″ Depth
- 24.5″ Height
CR-UCM2 Remote Chiller Unit, Sparkling & Still, 1 or 2 Coil Versions
Cold carbonation for better long lasting sparkling water. Designed for remote or backhouse mounting applications: Up to 45′. Use with out two faucet tower, CBR-V2C-SSX or three faucet CBR-V3C-SSX. Other options, styles and colored towers are available. Multi-tower station configuration possible.
- 80 liters per hour at <40°
- Self-contained refrigeration system
- Compressor: 1/3 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,600 per hour average
- Operating temperature range: 40°-100°
- Electrical: 120v – 15 Amps
- Carbonator: 1/3 H.P.
- Water bath: 6 gallons
- Ice bank: 25 lbs
- 2 Stainless steel water chilling coils
- Weight: 165 lbs
- Built-in re-circulatory pump allows for an installation distance up to 45′ between tower and chiller
- Custom configurations available
- 20″ Width
- 20″ Depth
- 20″ Height
CR-UCM2-2CL-S0096 High Capacity Remote Chiller Unit, Sparkling & Still, 2 Coil Version
Cold carbonation for better long lasting sparkling water. Designed for remote or backhouse mounting applications: up to 75′. CR-TFB1 recommended when installing in cabinet. Use with our two faucet tower, CBR-V2C or three faucet CBR-V3C. Other options, styles and colored towers available. Multi-tower station configuration possible.
- 80 liters per hour @<40°
- Self-contained refrigeration system
- Compressor: 1/3 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,600 per hour average
- Operating temperature range: 40°-100°
- Electrical: 120v – 20 amps
- Carbonator: 1/3 H.P.
- Water bath: 6 gallons
- Ice bank: 25 lbs
- Weight: 165 lbs
- Built-in re-circulatory pump allows for an installation distance up to 75′ between tower and chiller
- Custom configurations available
- 20″ width
- 26″ depth
- 20″ height
CR-UCW-BH Remote Chiller Unit, Still Water Only
Designed for remote or backhouse mounting applications: Up to 35′. Use with our single faucet tower, CBR-V1 or CM-1PB. Other options, styles and colored towers available.
- 37 liters/10 gallons per hour at <40°
- Self-contained refrigeration system
- Compressor 1/5 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,200 per hour average
- Operating temperature range: 40°-100°
- Electrical: 120v – 3 Amps
- Water bath: 4 gallons
- Ice bank: 9.5 lbs
- Weight: 85 lbs
- 12″ Width
- 18.75″ Depth
- 24.5″ Height
CR-UCM2-SW-2 Remote Chiller 2 Coil Unit, Still Water Only
Designed for remote or backhouse mounting applications: Up to 45′. Has double water loop, with two water outlets. Can be used with a CBR-V2 with two still water options, or two separate CBR-V1 towers. Multi-tower station configuration possible. Increased chilling capacity.
- 68 liters/18 gallons per hour at <40°
- Self-contained refrigeration system
- Compressor: 1/3 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,400 per hour average
- Operating temperature range: 40°-100°
- Electrical: 120v – 7.7 Amps
- Water bath: 6 gallons
- Ice bank: 25 lbs
- Weight: 135 lbs
- 20″ Width
- 20″ Depth
- 20″ Height

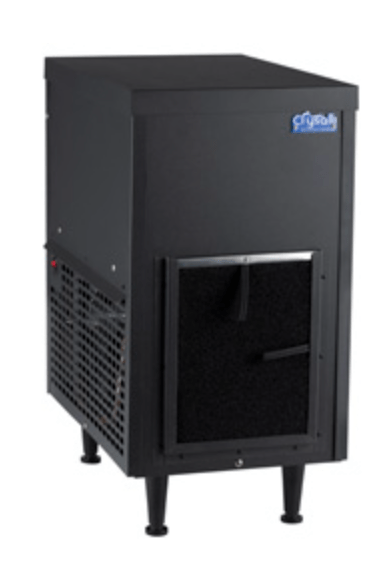

CR-UCM-MS Remote Chiller Unit, Sparkling & Chilled Still Water
Cold carbonation for better, long lasting sparkling water. Designed for undercounter or remote applications up to 10’ from draft tower. Compact design for tighter spaces. Water dispensing temperatures average between 34-40°. Use with our CBR towers. Use with our CR-24FC twin filter system.
- 37 liters/10 gal per hour @<400
- Self-contained refrigeration system
- Compressor: 1/5 H.P.
- Refrigerant: R134a CFC-free
- BTU: 2,200 per hour Ave
- Operating temperature range: 400-1000
- Electrical: 120v – 4 Amps
- Water Bath: 3 Gallons
- Ice Bank: 7 lbs
- Weight: 80 lbs
- 12.5”W x 18.75”D x 24.5”H
